Superthal® prefabricated heating modules

Superthal® heating modules are intended for use in production or laboratory furnaces/heaters wherever concentrated heat is needed. They provide major energy savings in several applications and offer the flexibility of different temperatures and processes to take place in the same furnace.

Prefabricated heating modules consisting of vacuum-formed ceramic fibre with an integral Kanthal® Super molybdenum disilicide (MoSi2) heating element for up to 1750°C (3180°F) element temperature.

Superthal® SMU

Superthal® Muffle SMU is used both for horizontal and vertical furnace applications. The SMU are specially designed to meet the requirements of each application in terms of power and dimensions. Max. operating temperature 1500ºC (2730ºF).

Mehr lesen

Superthal® SHC

Superthal® Half-cylinders, SHC is used both for horizontal and vertical furnace applications. The SHC are specially designed to meet the requirements of each application in terms of power and dimensions. Max. operating temperature 1550ºC (2820ºF).

Mehr lesen

Superthal® flat panels

These flat panels are heated by Kanthal® Super MoSi2 heating elements with the terminals either straight or 90° bent with fixed contacts. Element dimension and configuration depending on demands. The panels are designed for horizontal use.

Mehr lesen

Superthal® HT

For high furnace temperatures up to 1675°C (3045°F). Superthal® HT modules, for vertical operation, are available in standard sizes or as specially designed heating packages.

Mehr lesen

Superthal® Mini

Superthal® Mini is a complete compact heater ready to connect to the power supply. This product is used in melting and processing for the dental and medical industry and general material research and development. It is easy to control and can be rapidly heated up and cooled with a uniform temperature profile.

Mehr lesen

Superthal® X

Superthal® X ist eine zuverlässige und bedienerfreundliche Heizplatte mit einer Arbeitstemperatur von ca. 1600 °C. Dank des neuen Designs sind die Elemente während des Betriebs stabil und sorgen damit für eine deutliche längere Standzeit des Produkts.

Mehr lesen

Von unseren Experten lernen

Die neuesten Produkte

Accurate and flexible heating for materials testing

KIMAB, corrosion and metals research institute, is situated in central Stockholm in Sweden and serves the Swedish steel industry and other research institutes with information services, technical and manufacturing support, materials and materials processing development, product design and development, consultancy and various material testing services.

Mehr lesen

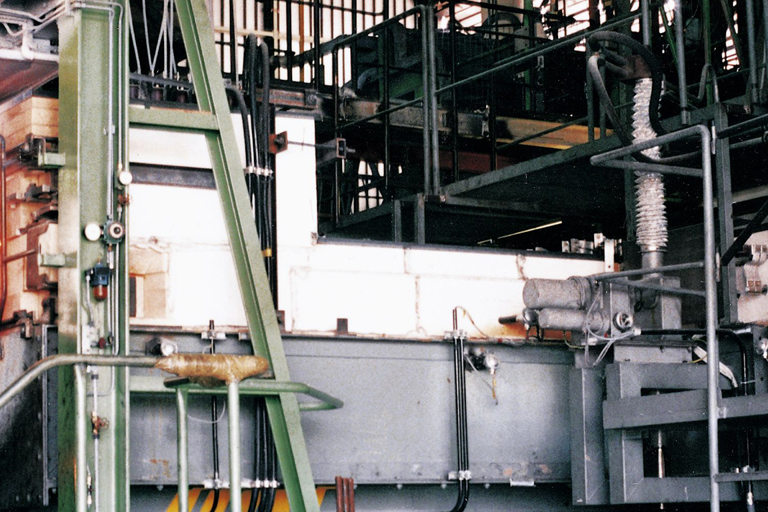

Energy saving in the glass industry

Walther-Glas in Germany is one of many companies utilizing SuperthalTM Flat panels in their forehearths and they have also followed up the results in a systematic way. Walther-Glas GmbH in Bad Driburg produces mainly domestic and all-purpose glassware by the pressing method for the gift sector, as well as pressed glass articles for the car industry.

Mehr lesen

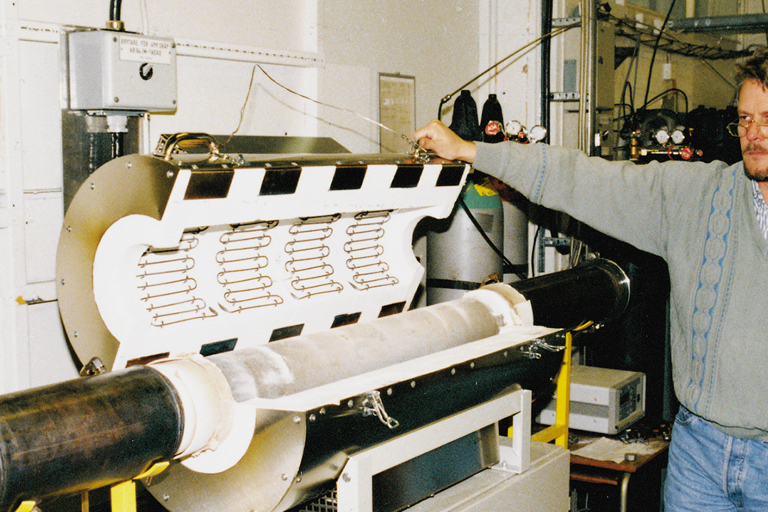

Production Increase with heater for plastic pipes

Uponor AB situated in the middle of Sweden, is one of Europe’s leading manufacturers of plastic pipes and plastic coated steel pipes for the building industry. The company has some 450 employees and is marketing their products in more than 30 countries.

Mehr lesen
